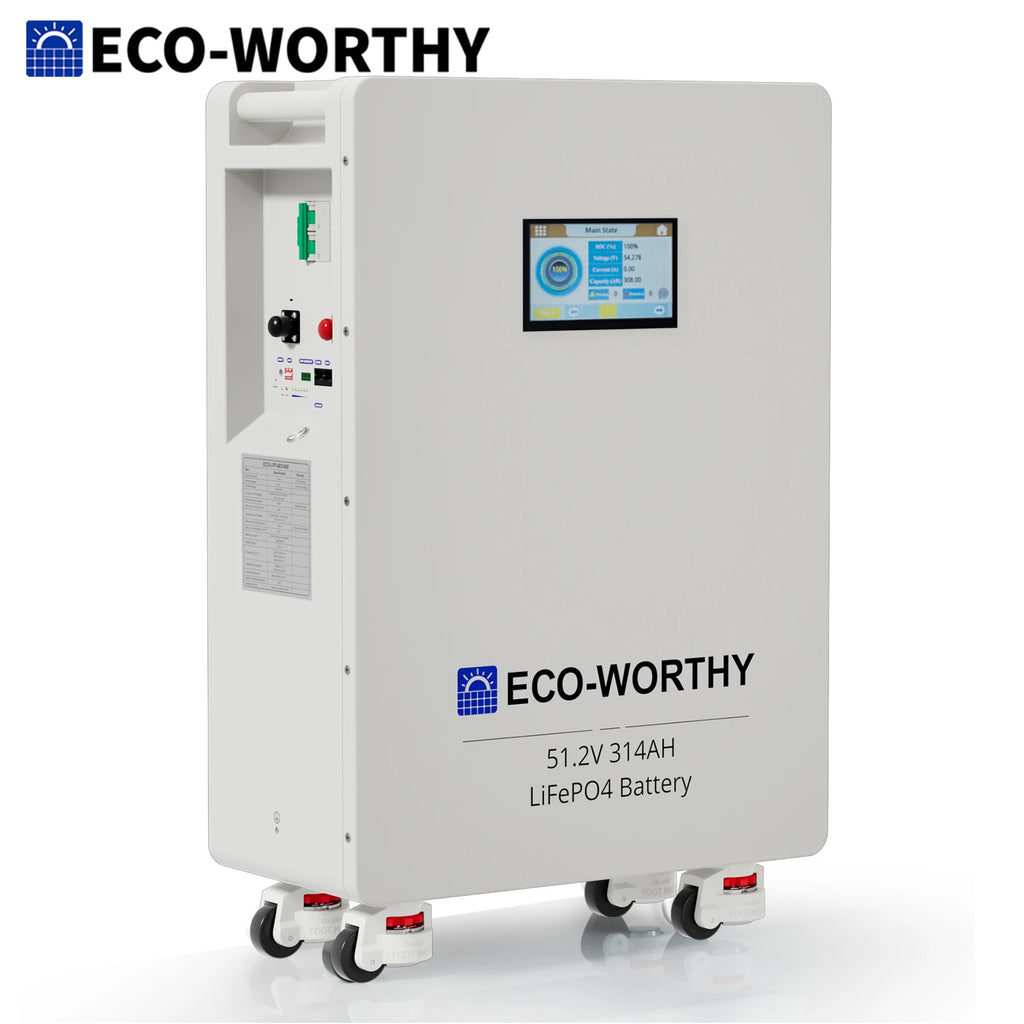

ECO-WORTHY 48V 314Ah (V1) LiFePO4 Lithium Battery, 16.1kWh High Capacity Energy Storage with Breakers RS485/CAN/RS232 for home
ECO-WORTHY 48V 314Ah (V1) LiFePO4 Lithium Battery, 16.1kWh High Capacity Energy Storage with Breakers RS485/CAN/RS232 for home
SPECIFICATIONS
Amp Hours: 280Ah
Application: Home Energy,UPS,Home Backup,off-grid
Brand Name: ECO－WORTHY
Certification: NONE
Charging Temperature: 32~131℉/0~55 ℃
Connection: Others
High-concerned chemical: None
Maximum continuous charge: 200A
Maximum continuous discharge: 200A
Model Number: 1100700163
Nominal Capacity: 16076.8wh
Nominal Voltage: 51.2V
Number of series and parallel connection: 15 in parallel
Origin:
Rated Capacity: 14.336kWh
Rated Voltage: 48V
Size: 20.5*9.9*29.3in/52.0*25.2*74.5cm
Standard Charge: 100A
Standard Discharge: 100A
Type: LiFePO4,Lithium Iron Phosphate (LiFePO4)/Lithium Battery
Voltage: 48v
Warranty: 10 Years
Weight: 297.6lb/135kg
[Large Capacity]

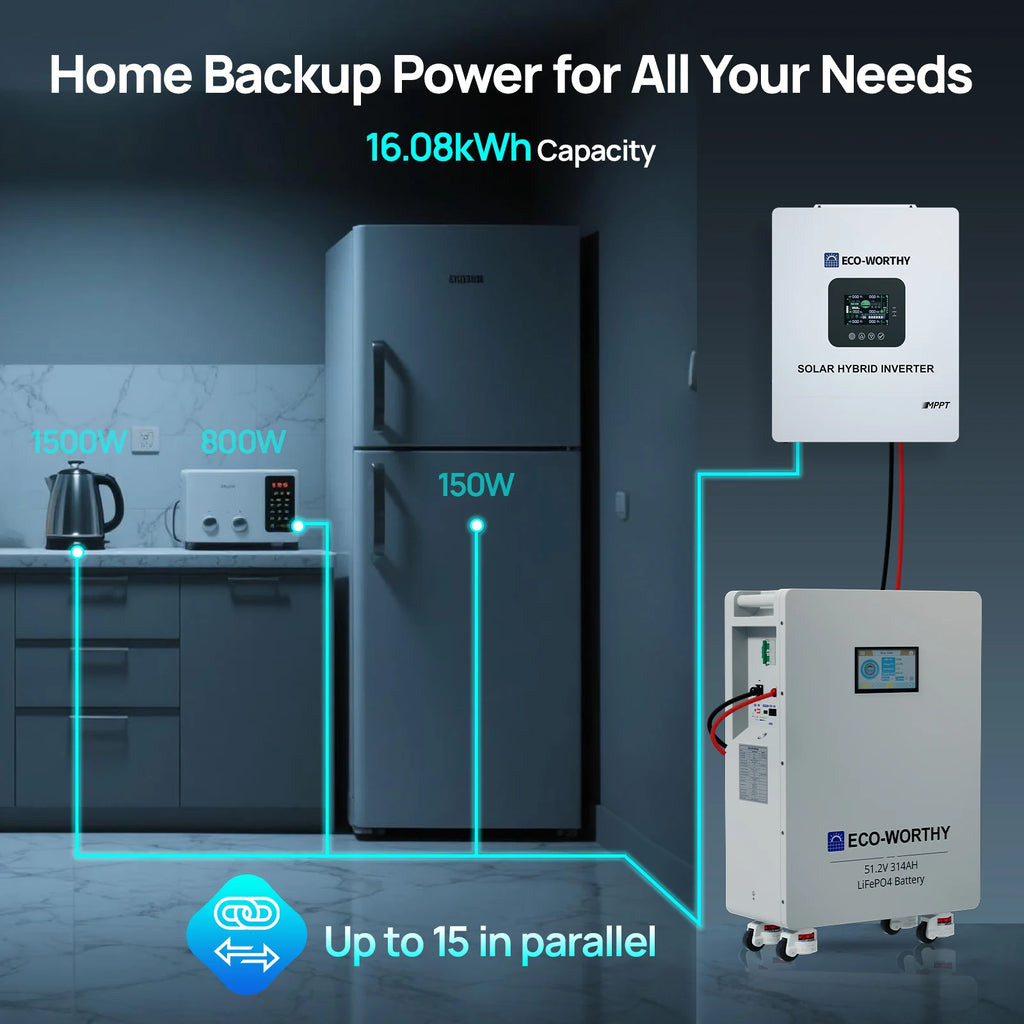

High-quality Grade-A cells are connected in series, one battery can store 16.07kWh of electricity, and up to 15 batteries can be connected in parallel.
[Convenient Monitoring]
This battery features an upgraded, larger display that clearly shows key information, including the capacity, voltage, current, temperature, and cell status of both the master and slave batteries, built-in communication interface supports connection to the host computer or inverter for communication.
[Dual Protection]

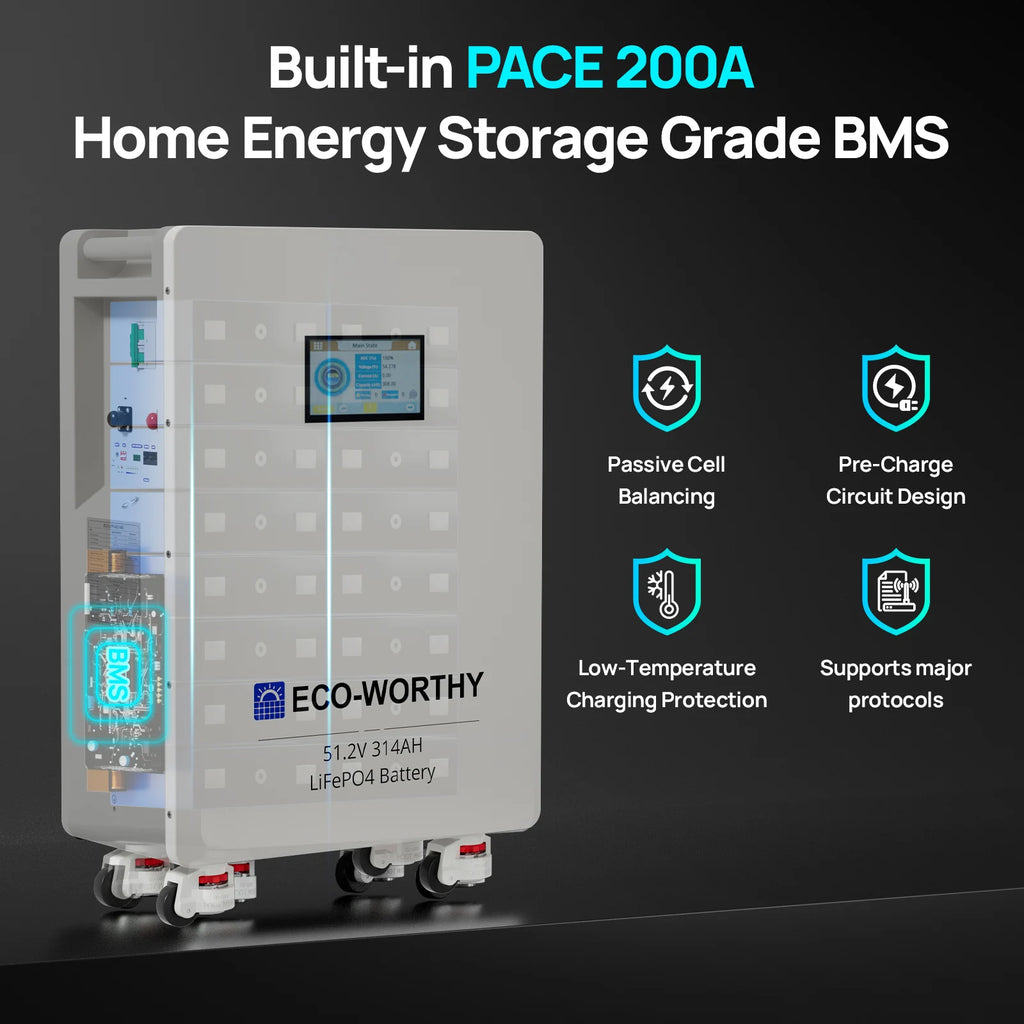

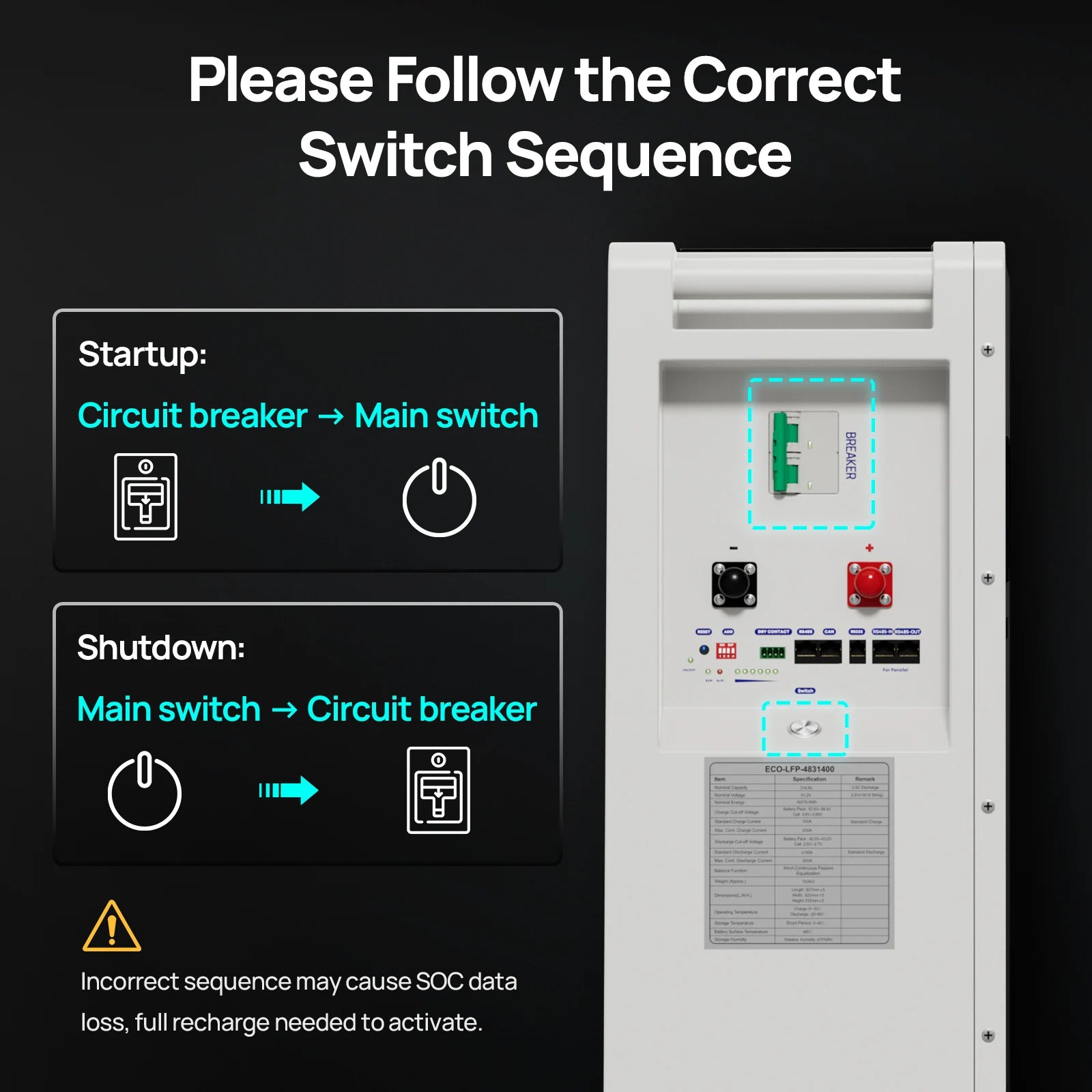

The built-in 200A PACE BMS offers intelligent protection with high/low temperature, overcurrent, and overvoltage protection. A 250A circuit breaker with an integrated shunt trip unit ensures quick disconnection of battery input and output in case of emergencies, ensuring electrical safety.
[Thoughtful Installation Design]
The upgraded battery features detachable terminals for easy installation and flexible expansion. It is also equipped with four durable Footmaster Nylon wheels and L-shaped brackets, allowing for effortless mobility while ensuring secure fixation in a specific position.
[Extremely Long Life]

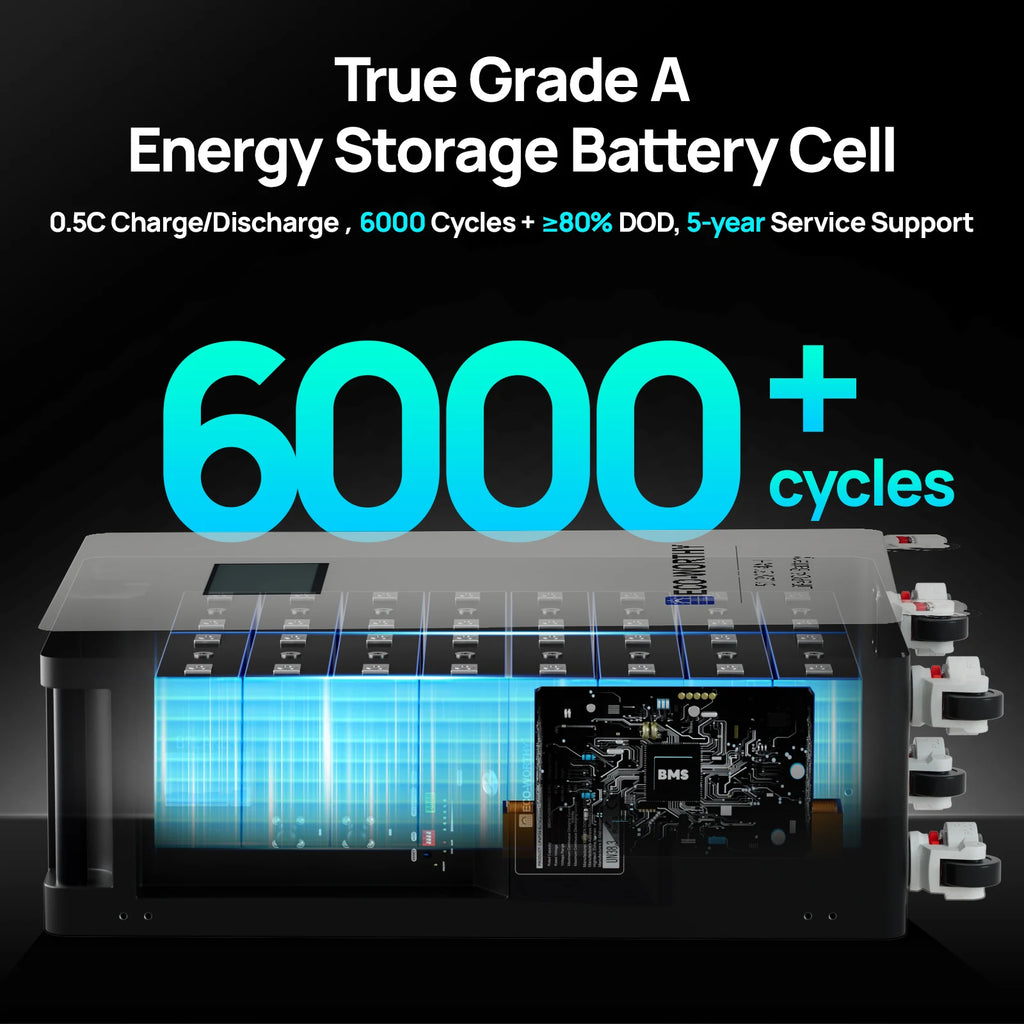

Designed for long-term use, the battery cell has a DOD of more than 80% after 10,000 cycles, providing you with a service life of more than ten years.
