SPECIFICATIONS

AI Functions: Motion Detection

AI SSA: Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions.

AcuPick: Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.

Brand Name: ASMIWO

Color: WHITE

Color Night Vision: Yes

Connectivity: IP/Network Wired

Face Detection (Full Image): Face detection; snapshot; snapshot optimization; optimal face snapshot upload; face enhancement; face snapshot set as face or one-inch photo; snapshot strategies (real-time snapshot, quality priority and optimization snapshot);face angle filter; optimization time setting.

High Definition: 8.0 Megapixels

High-concerned chemical: None

IP Rating: IP67

IR Distance(m): up to 30 m (98.43 ft) (IR LED)

IVS (Perimeter Protection): Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), stay detection, loitering detection

Installation: ceiling,Normal,Wall Mounted,Pendant Mount,Vertical Pole Mount,Corner Mount

Internal Storage: None

Lens (mm): 2.8mm

Lens Quantity: Single Lens

Megapixels: 8MP

Minimum Illumination(Lux): 0.004 lux@F1.0 (Color, 30 IRE)0.0004 lux@F1.0 (B/W, 30 IRE)0 lux (illu

Origin:

Power Source: With Poe,Normal

Power Supply: With Poe

Power Supply(V): DC12V

SMD: SMD 4.0

Scene: Indoor and outdoor

Sensor: CMOS

Shell Material: Metal

Smart Search: Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Special Features: Waterproof / Weatherproof

Style: Turret Camera

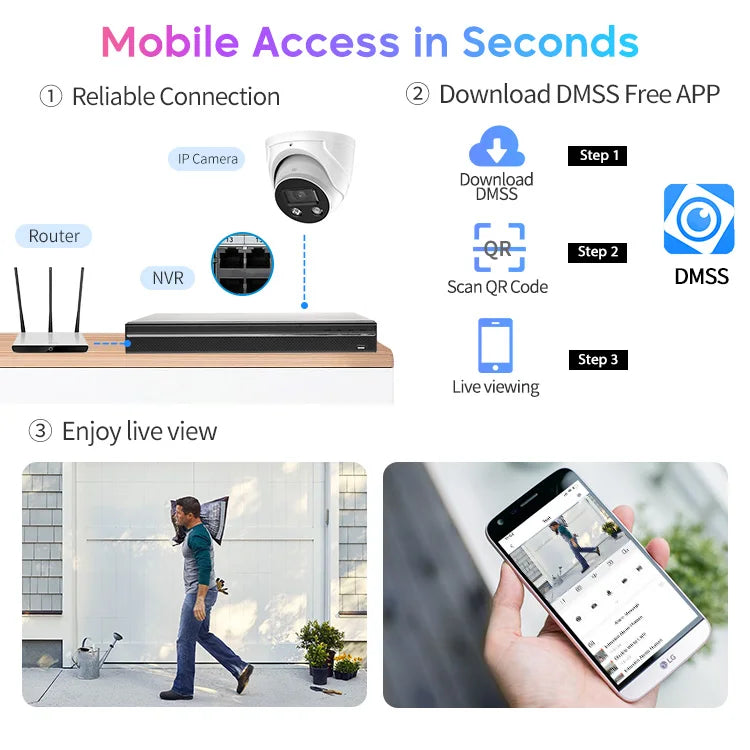

Supported Mobile Systems: iOS,Android

Supported Operating Systems: Windows 10,macOS

TF Card: None

Video Compression Format: H.265,H.264

Whether or Not 50Vac or 75Vdc or Higher Power Supply: No

Zoom: NONE

Zoom type: None

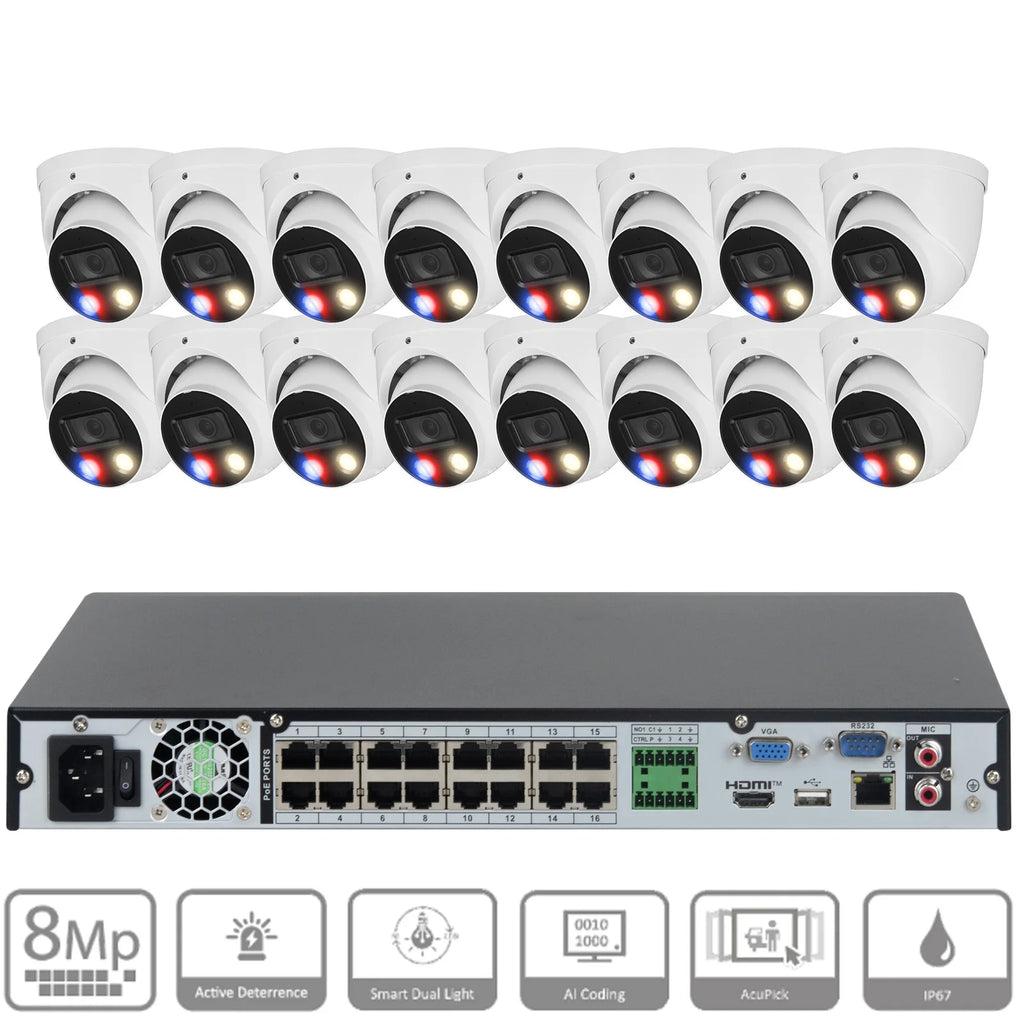

8MP Smart Dual Illumination Active Deterrence Fixed-focal Eyeball IP Camera

· 8-MP 1/2.7" CMOS image sensor, low luminance, and high definition image.

· Outputs max. 8 MP (3840 ×2160)@25/30 fps.

· H.265 codec, high compression rate, ultra-low bit rate.

· Built-in warm light and IR LED; the max. IR illumination distance is 30 m and warm light distance is 30 m.

· ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.

· Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.

· Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human), stay detection, loitering detection; face detection (full image).

· Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.

· Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; buit-in dual Mic; 1-ch speaker; support two-way talk.

· 12 VDC/PoE power supply.

· IP67 protection.

· Sound and light alarm (red and blue lights).

· SMD 4.0.

· Supports AI SSA and one-tap arming and disarming.

· SMD area can be set in warm light areas that support triggering alarms

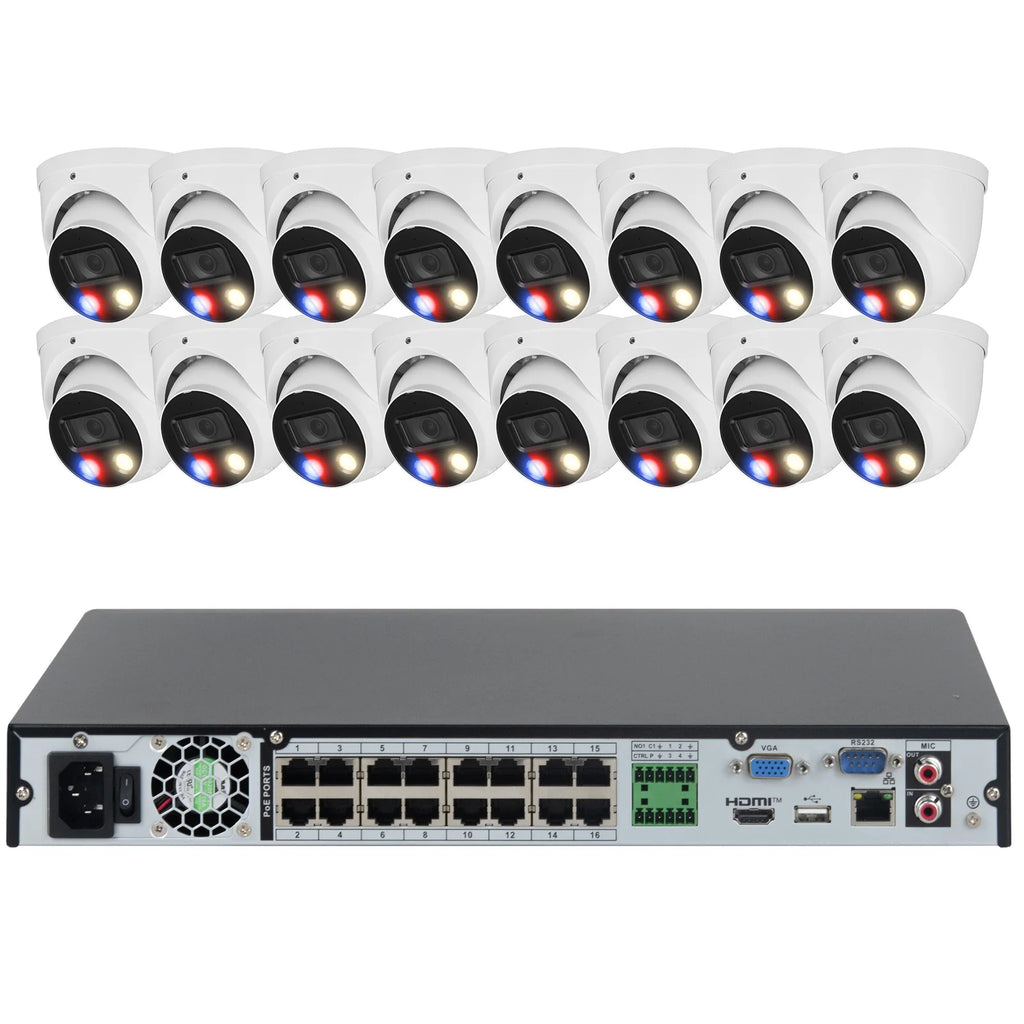

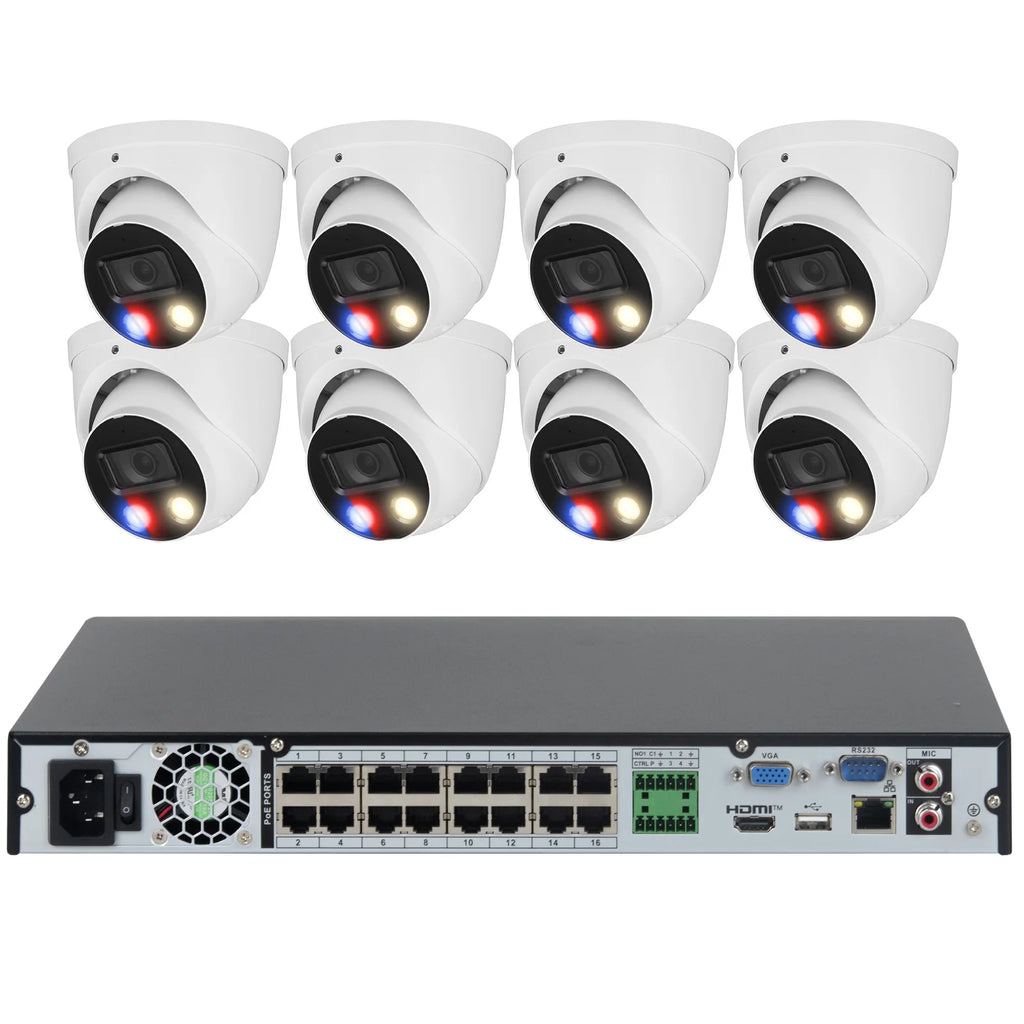

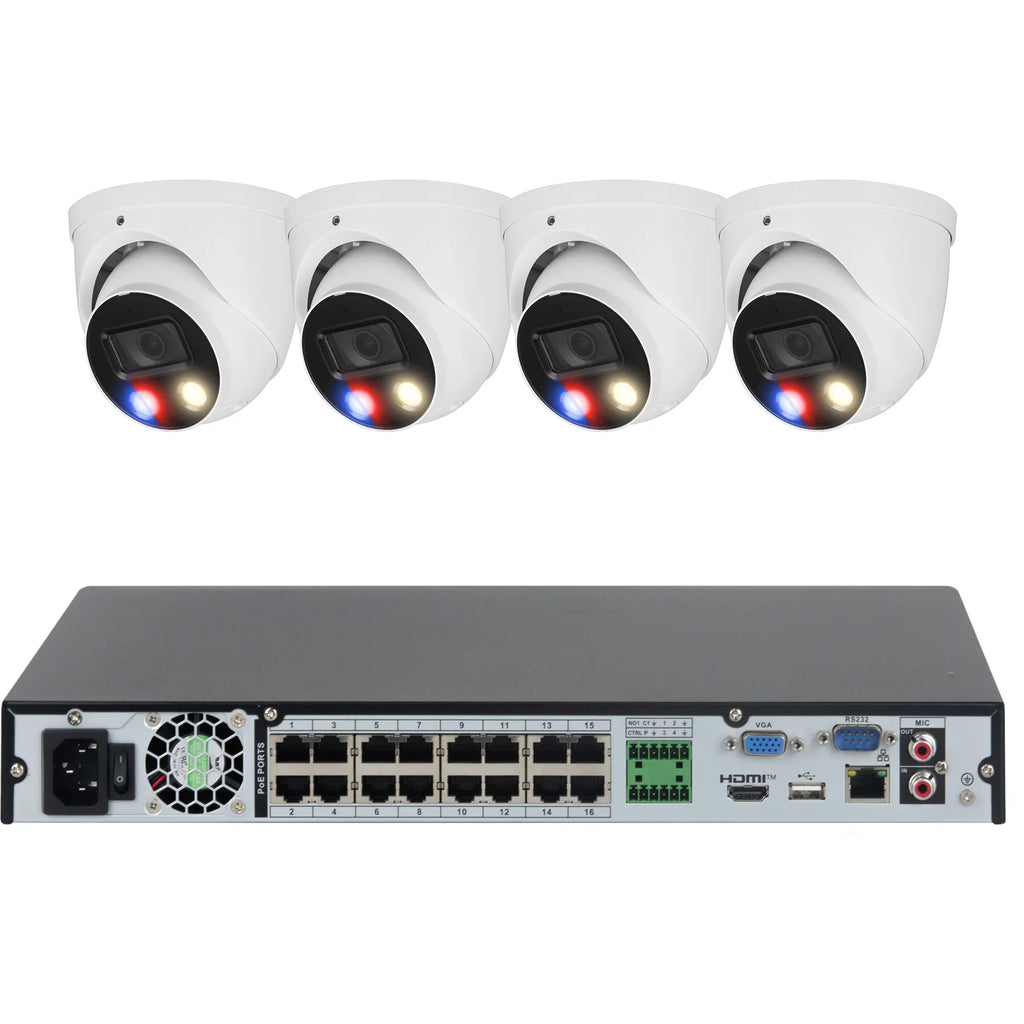

16 Channel 1U 16PoE 2HDDs WizSense Network Video Recorder

· Smart H.265+/H.265/Smart H.264+/H.264/MJPEG decoding format

· Max. decoding capability: 6 × 1080p@30 fps. Supports adaptive decoding

· 1-channel face detection and recognition (AI by NVR); 1-channel perimeter protection (AI by NVR); up to 10 face databases and 5,000 face images; 4-channel SMD Plus (AI by NVR);

· AI by camera: Face detection and recognition, perimeter protection, and SMD Plus

· Connected to the third-party network cameras

· Security baseline 2.1
